92 Toyota clutch pedal bracket broken / repair


waynep71222
New User
Posts: 17
Joined: 05/12
Posted: 02/26/13 10:23 PM

the clutch pedal would not fully release the clutch..  the owner reported a noise like a spring breaking.. then a spongy clutch pedal..

this is what i found ...

and yes.. the steering column and a bunch of the dashboard had to come out.. as did the clutch slave cylinder and the power brake booster mounting nuts..
i did not loosen any brake or clutch hydraulic lines.. there is enough room to move them out of the way.

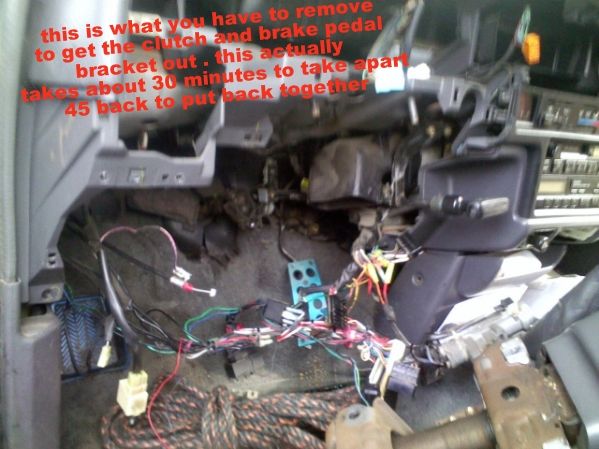

1992 Toyota PU Pedalbracketunderdashremoved Zps52fb9467

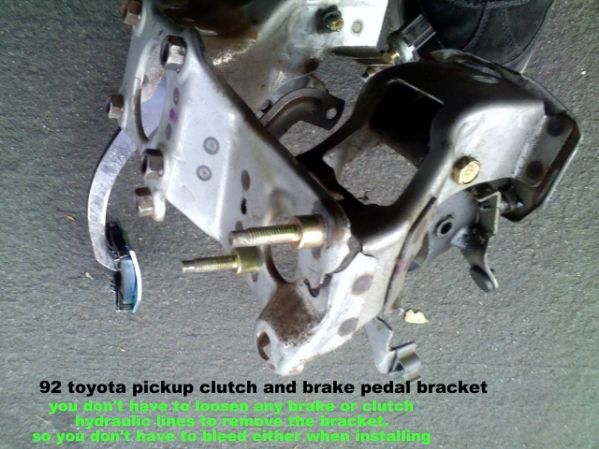

1992 Toyota PU Clutch Pedal Bracket1a Zps9039ffd4

1992 Toyota PU Clutch Pedal Bracket1 Zpsd28e6ee6

1992 Toyota PU Clutch Pedal Bracket2 Zps3c952c49


now.. for some reason .. my local toyota dealer has this part in stock.. except he wanted over 200 bucks for it..

i took it over to a local welding shop as i don't currently have a welder set up.

1992 Toyota PU Clutch Pedal Bracket3 Zps05098b39

1992 Toyota PU Clutch Pedal Bracket4 Zpsa0700185

1992 Toyota PU Clutch Pedal Bracket5 Zpsd4044604


this made the clutch pedal feel firmer than ever before..
