Project P.O.S Mazda


flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:20 PM

Hey everyone, my name is Tyler Brooks, i'm from Vancouver island B.C. Canada. I'm pet. member of Relaxed Atmosphere///. I've been building this 91 Mazda B2200 since 2005. I'm almost done, should be ready for FFF show for its first show.

I'll start the build thread from the start of the build.

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:27 PM

Ok. I bought the truck on june 16th 2005. I found it in a guys backyard beat to hell. I bought it for $400, they towed it to my house and I started on it right away

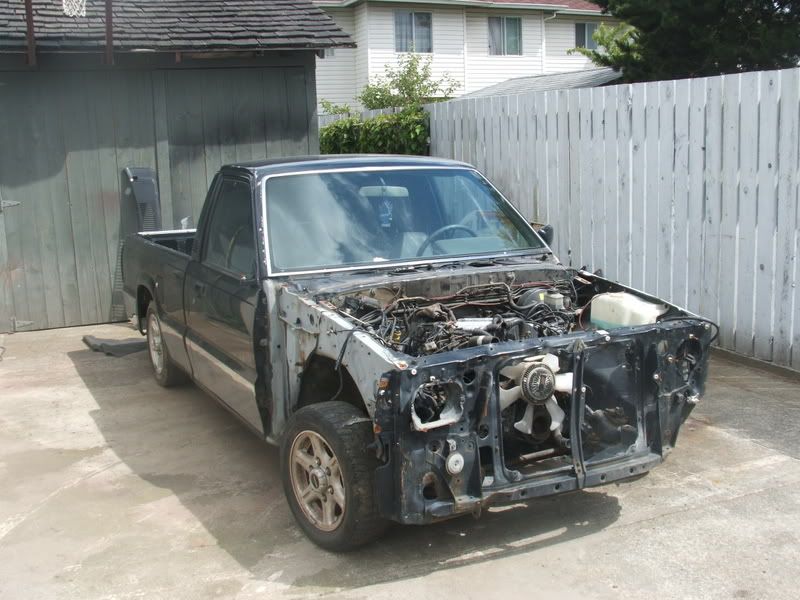

Firstday

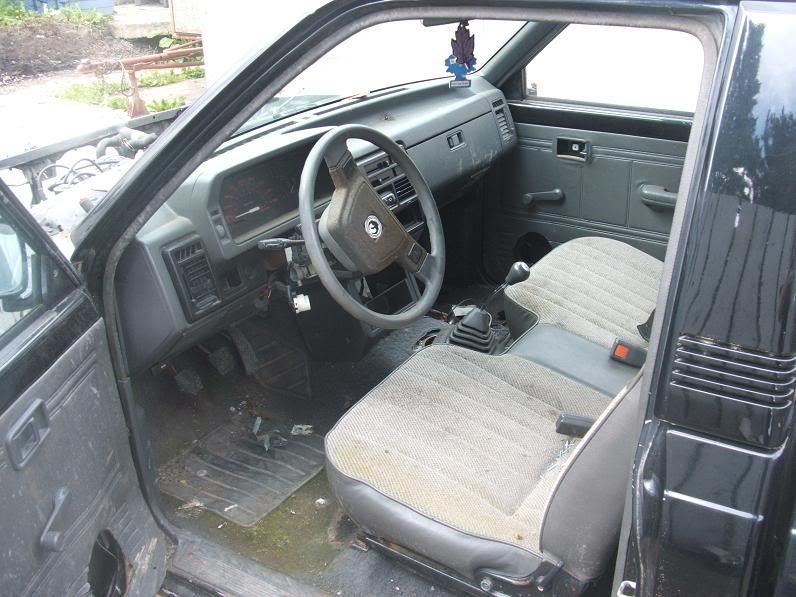

Firstday5small

Firstday3small

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:30 PM

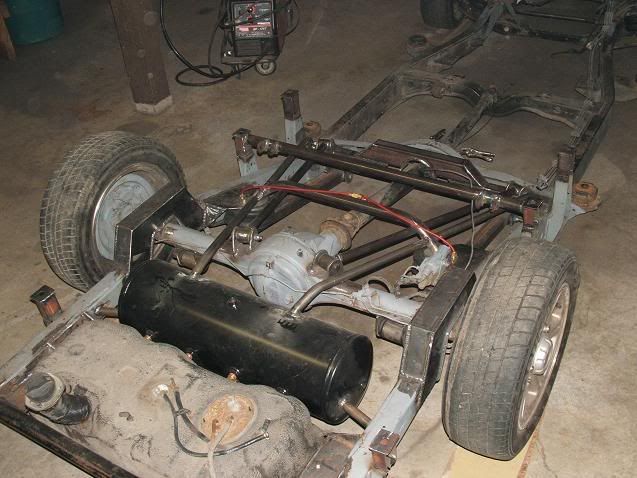

I took the maz over to Devins house where we began the suspension work, and the body drop.

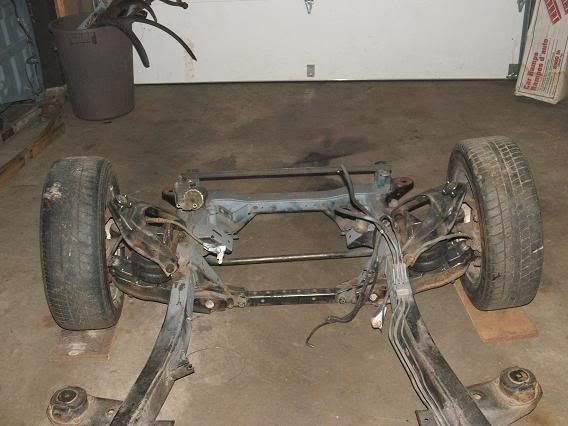

Frontsuspensionsmall

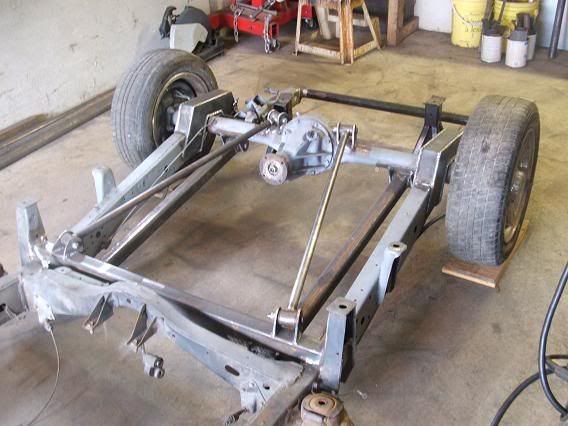

4Linkandnotchsmall

Rearsuspensioncomplete2small

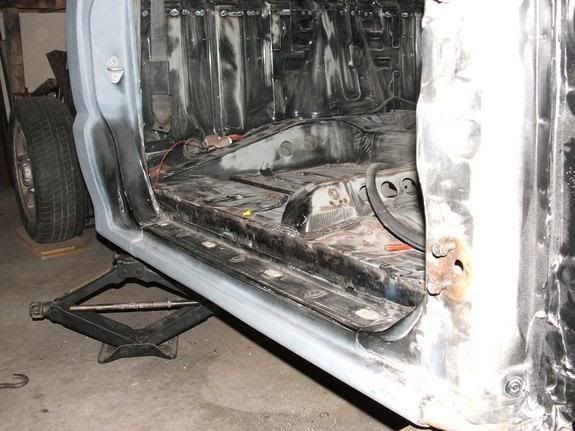

2307639 51 Fullsmall

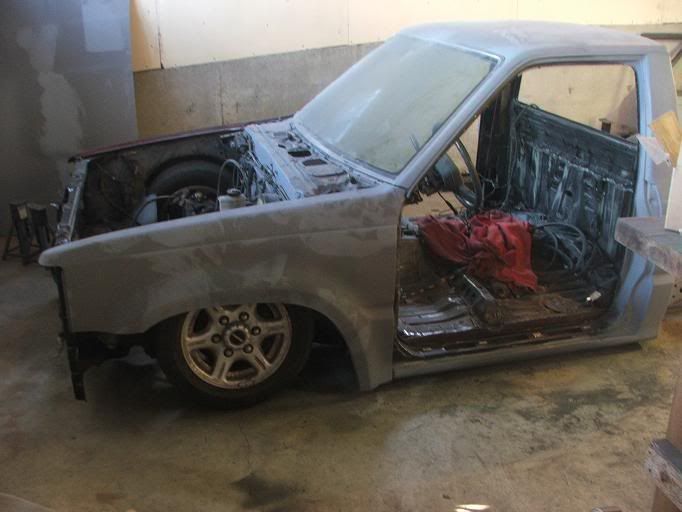

Bdcabwithfendersmal

Bedfloorafterbd1small

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:32 PM

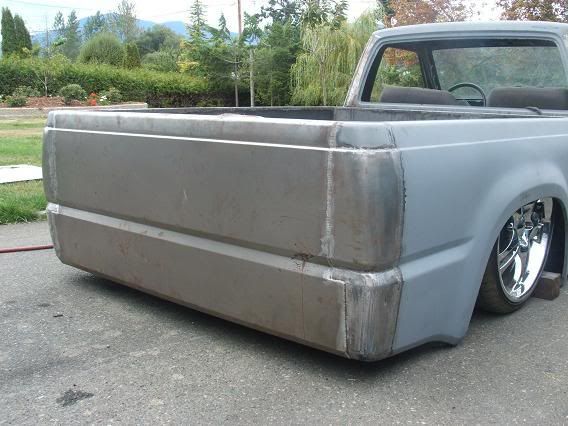

after the suspension and body drop was done we moved on to body mods. the first things we did were shave up the rear and sheeted in the bed

Picture038small

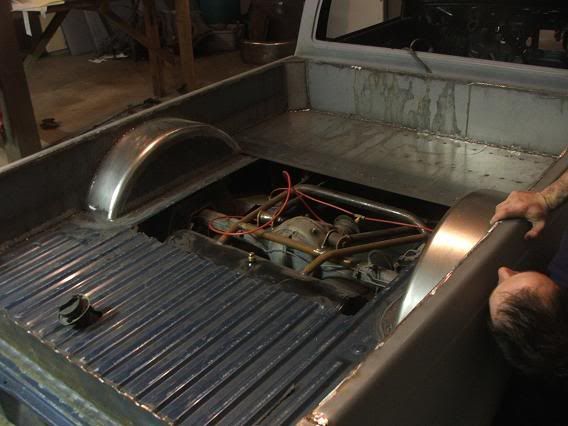

U

Picture047small

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:36 PM

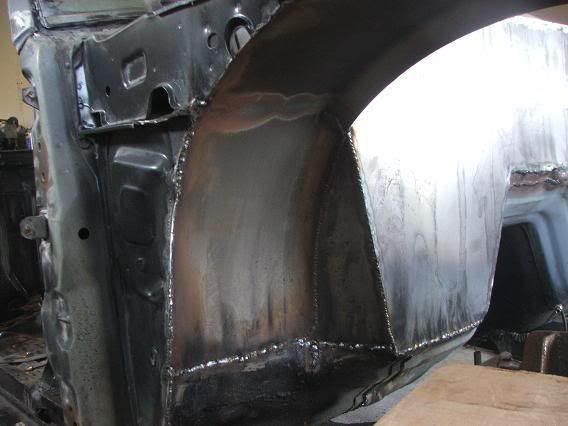

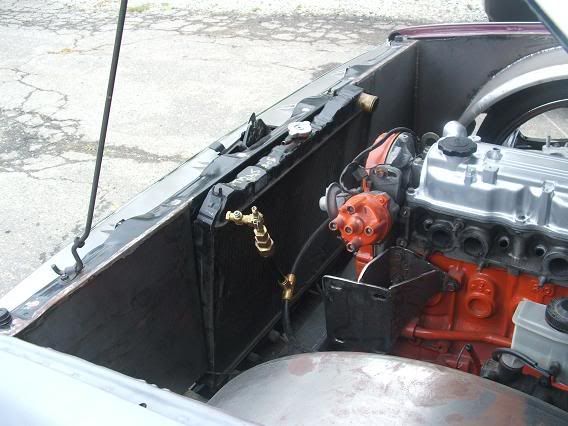

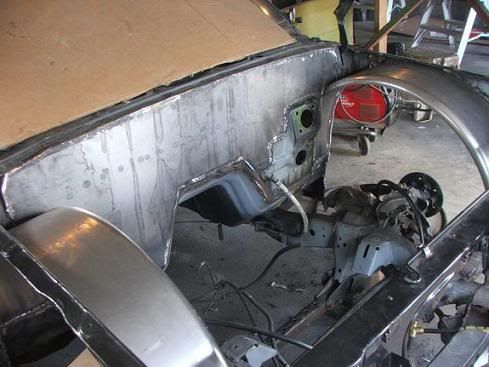

the next mod we did was a full sheetmetal engine bay. we used 16 gauge sheet and made a new smooth firewall. tubbed it out for 20's and used trailer fenders for the inners

2307639 2 Fullsmall

2307639 30 Fullsmall

Wheeltubssmall

Picture030small

2307639 67 Fullsmall

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:39 PM

next thing we did was chop the top. It is a 2 inch chop using all the stock glass (front, sides, and rear) the chop is so suttle, but it makes a noticable change.

Logo5031small

2307639 41 Fullmjsmall

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:43 PM

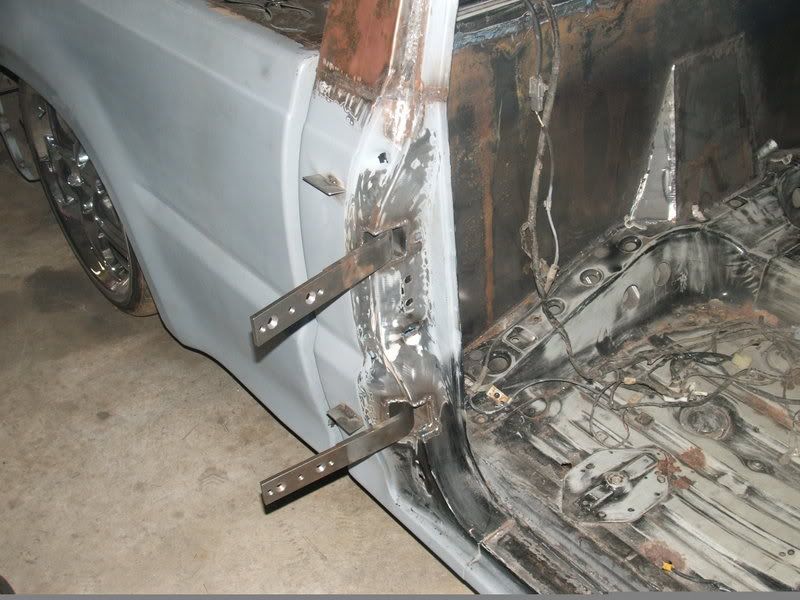

we then did suicide doors using hagen hindges and latches


Picture092 1


Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:47 PM

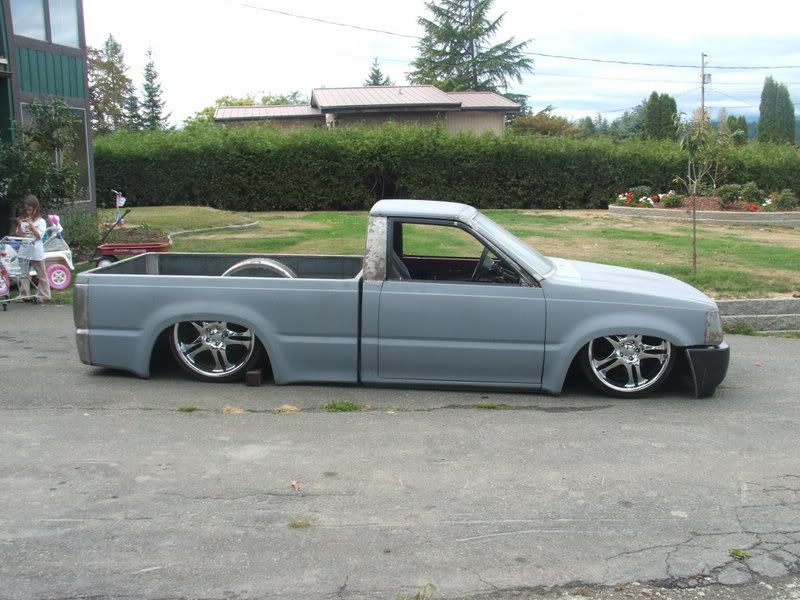

next we got it all together and rolled it outside for the first time and took some pics before we broke it all down for detailling

Picture019 1

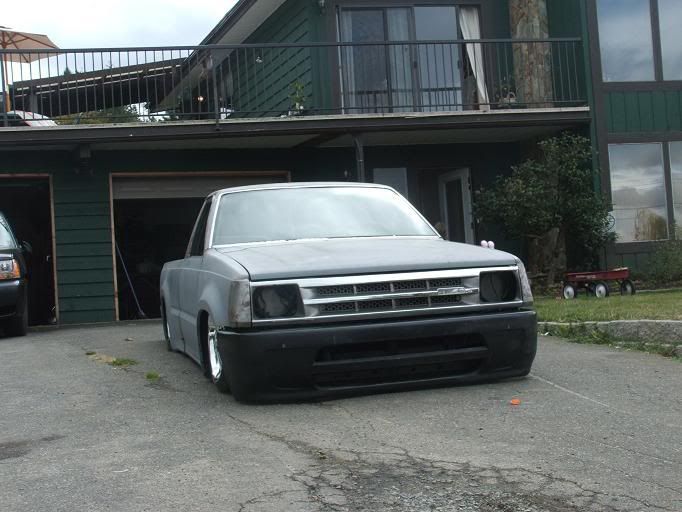

Picture021small

Picture020supersmall

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:50 PM

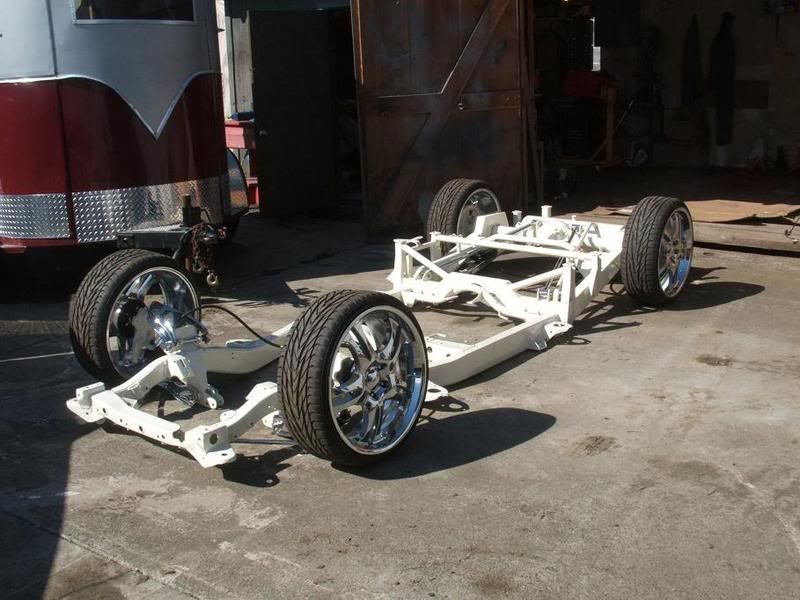

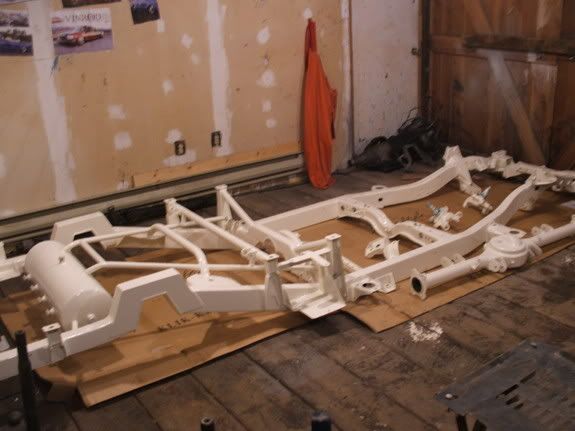

the first thing i started on was getting the frame detailed and together

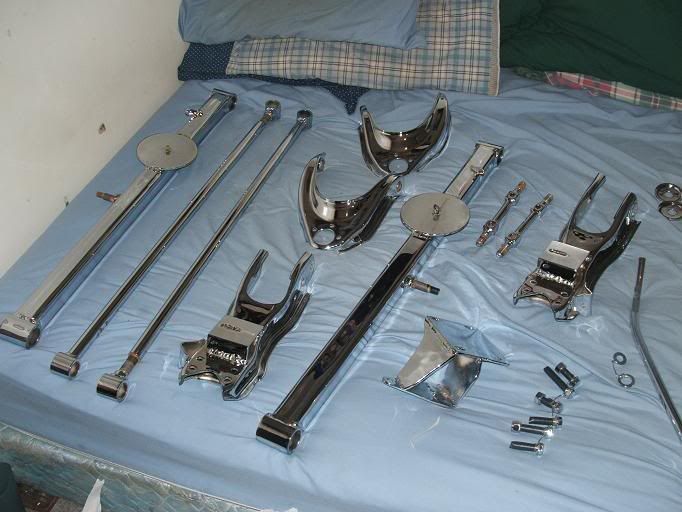

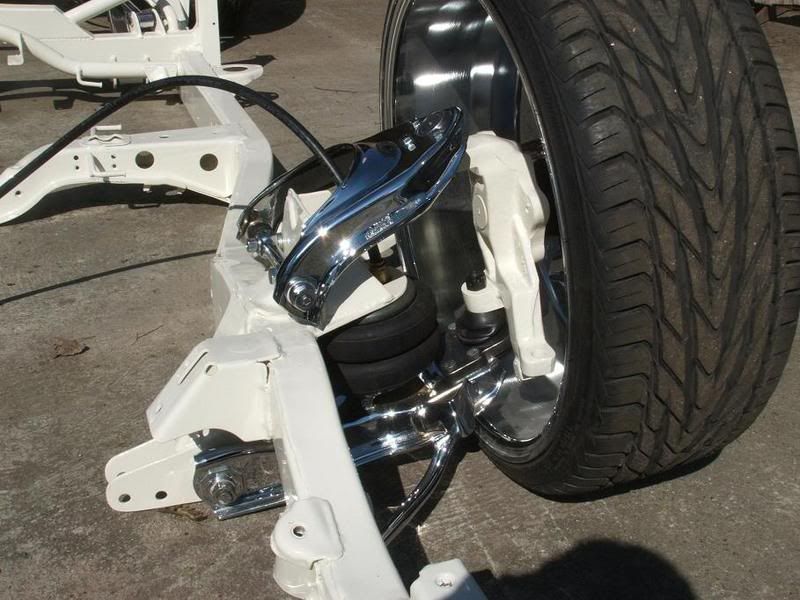

we shaved up the frame of all its hole and then had it powder coated almond. I also had all the suspension components and steering chrome plated

Outkkfsmall

Picture202small

Picture150small

Picture159small 1

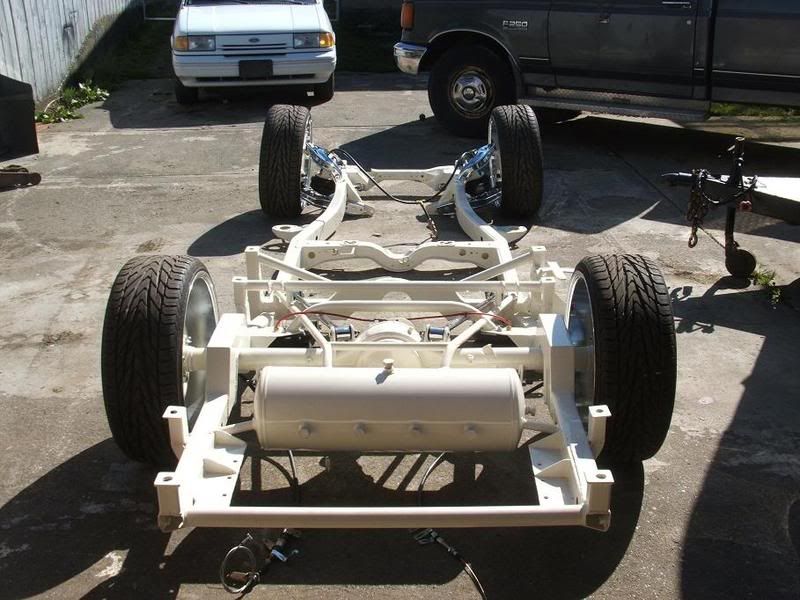

Picture156small

Picture153small

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 09:56 PM

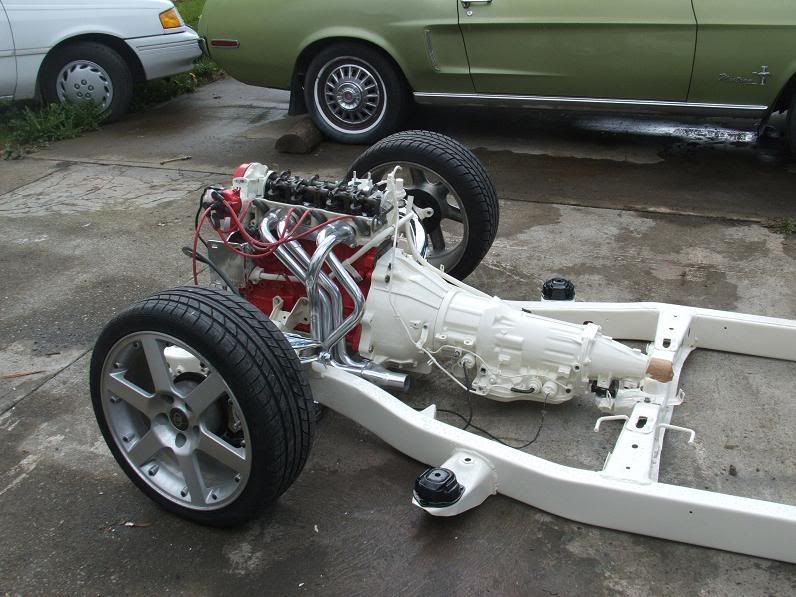

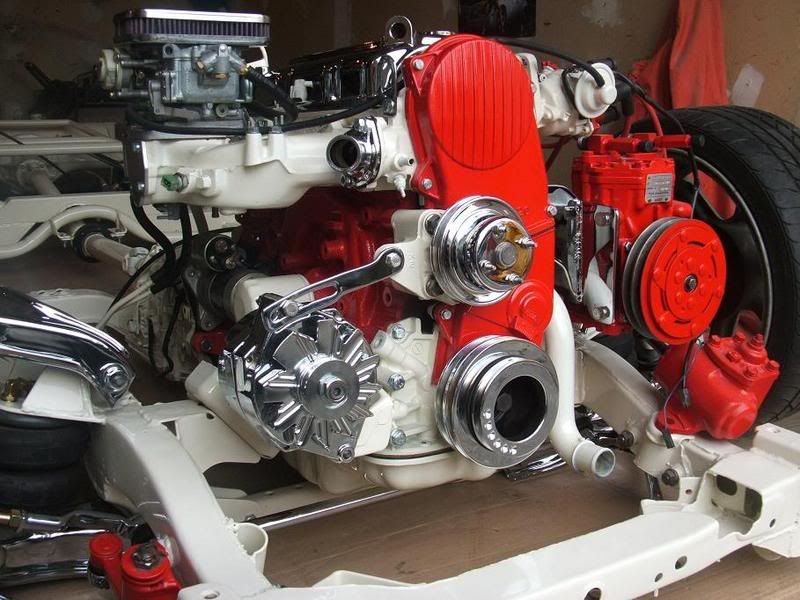

next came time to build up the motor. it is the stock 2.2, it has been completely rebuilt. i added a weber carb and a pacesetter header. i upgraded to a chrome chevy 350 alternator, and also switch over to a auto transmission. everything as been painted polished or chrome plated.

Picture170small 1

Picture657small

Picture666small

Picture676small

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 10:00 PM

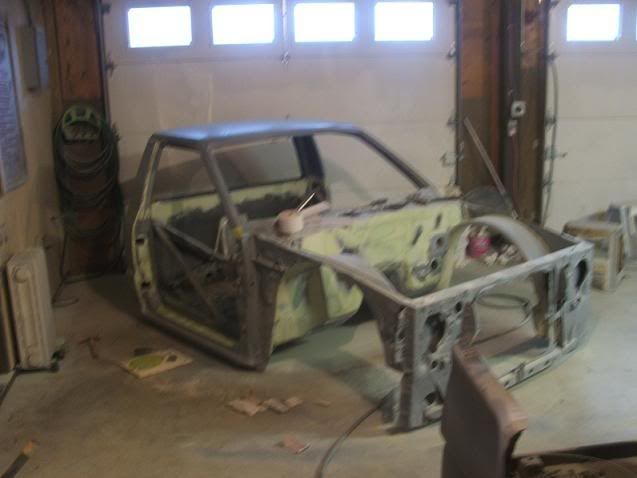

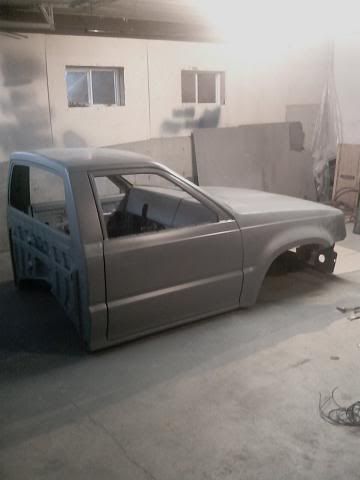

once i was done with the frame i started on the body,

Picture758small

IMAGE 064Small

Picture683small

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 10:02 PM

the color i went with is a ppg 03 dodge viper red

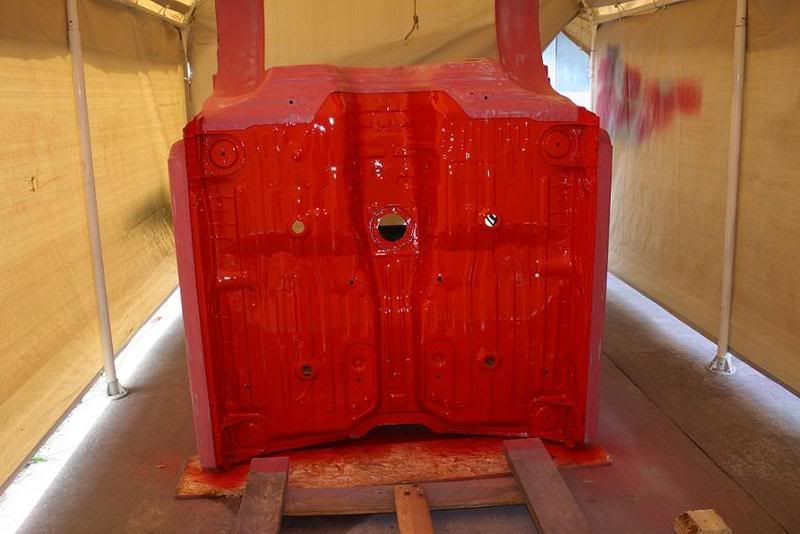

Picture709small

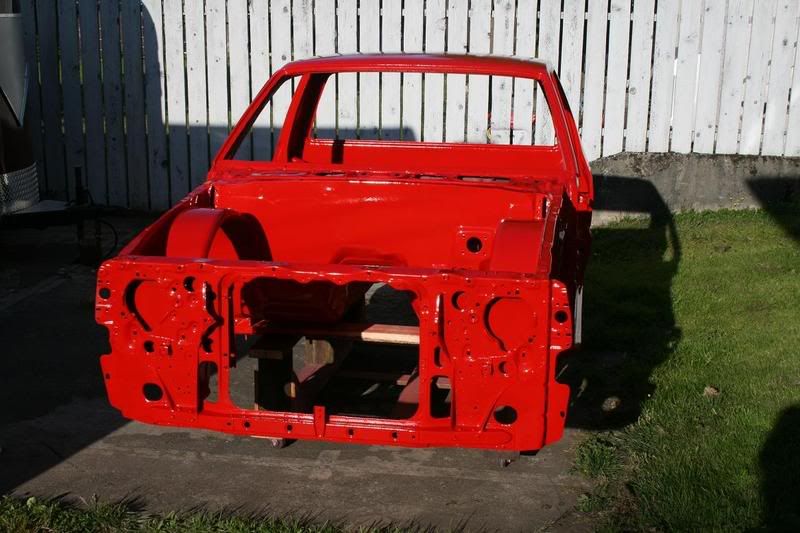

Picture736small

Picture733small

Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 10:05 PM

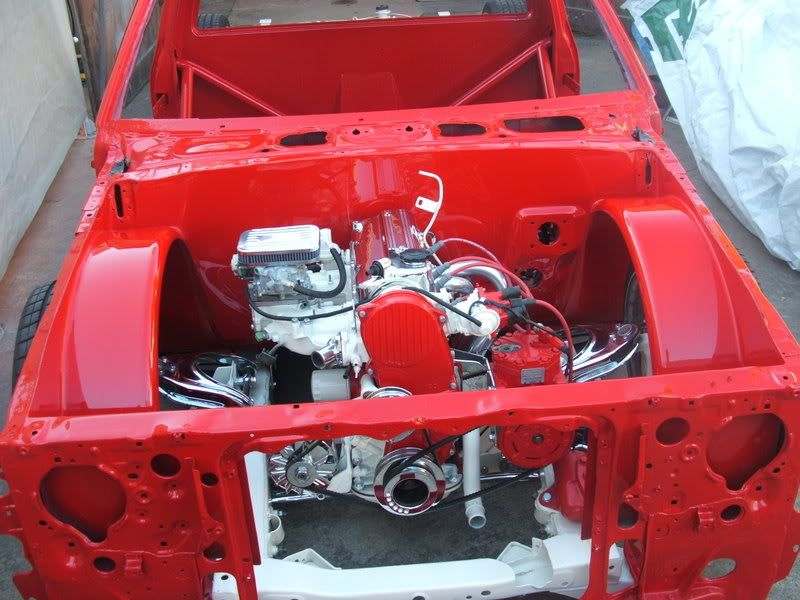

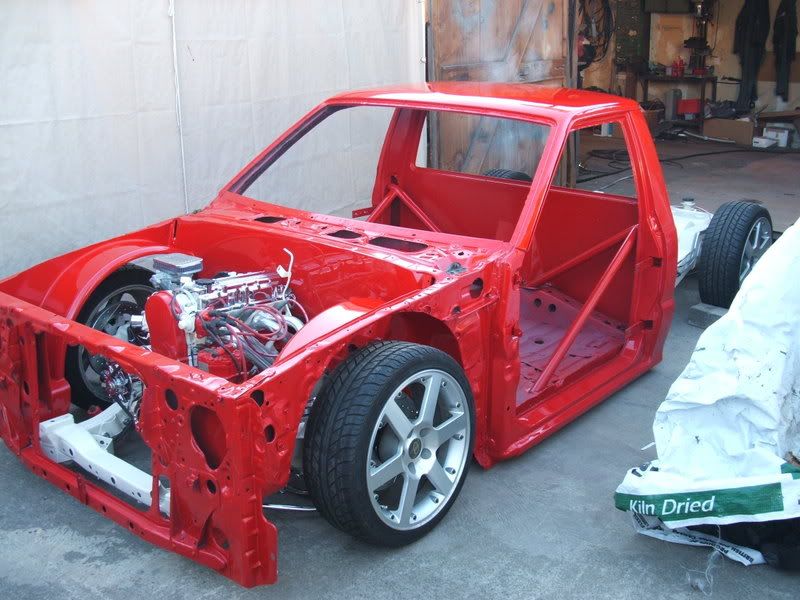

heres a couple pics of the truck after we put the cab on the frame

Picture046 1

Picture049 1

IMAGE 004

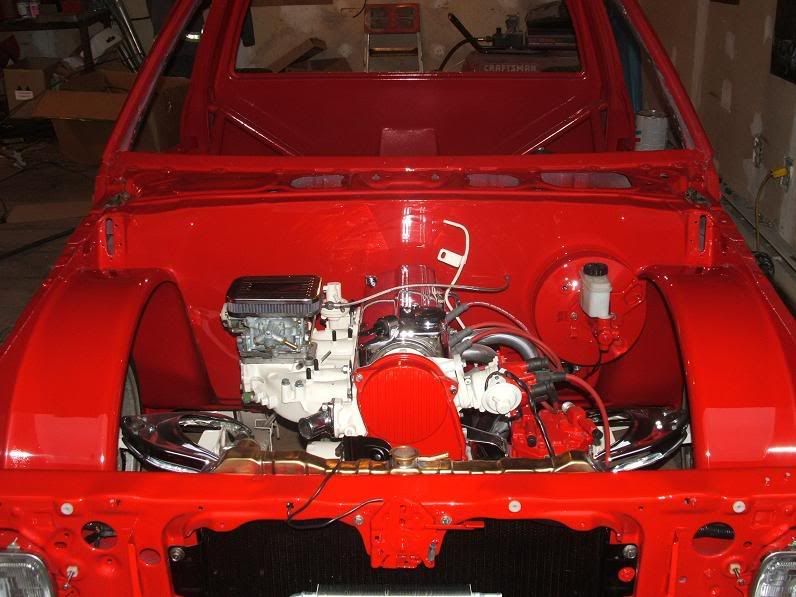

Picture075 1



Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 10:07 PM

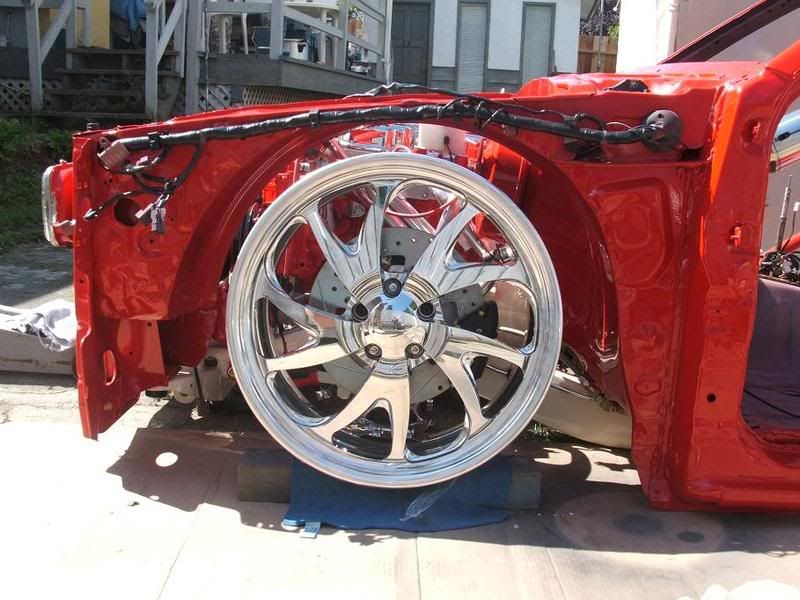

i just recently got my new set of wheels, the are Budnik Sweepers, 20x8.5 with a 7 inch backspace

Picture236 1



Post Reply
flameds10
New User
Posts: 16
Joined: 09/08
Posted: 09/19/08 10:09 PM

and that about where i am with it right at this moment, i am currently just getting all the wiring done and getting the sheet metal back on. just basically puttin it all back together. i'm always working on it so it'll be updated quite often. let me know what ya'll think.

Post Reply
